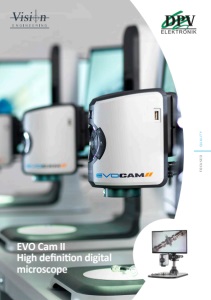

EVO Cam II High definition digital microscope FOCUSED QUALITY
EVO Cam II is an easy-to-use high definition digital microscope, with a range of configuration options which make it suitable for wide variety of applications. EVO Cam II’ s unique combination of high quality image, ease of use, and flexible configuration to meet the demands of a range of tasks, is commonly used for quality and inspection activities in multiple industries, including: Electronics, Medical Device manufacture, Aerospace, Automotive, and Life Science. Excellent optical performance makes EVO Cam II a powerful imaging solution, with a range of options to ensure exceptional clarity for any application. Intuitive design simplifies operation and minimises training requirements, making EVO Cam II a powerful and flexible tool, ideal for multiple applications, users and a variety of environments. CLEAR | EASY | FLEXIBLE DPV Elektronik-Service GmbH | www.dpv-elektronik.eu
Easy user set up EVO Cam II offers two levels of user settings to ensure operators have the correct level of function access. Simple to understand display- the on screen function description gives users information about EVO Cam II’s controls in any one of 10 pre-loaded languages. Easy teams set up- Minimise team setup time and ensure all your systems are configured identically by exporting the settings from your master EVO Cam II and share with the team. Store your settings files for later recall. Powerful and effective tools deliver consistency, efficiency and ease to your Quality system Improve operator throughput, consistency, and quality standards with the right range of simple, effective capabilities including: Instantly compare the difference between a recorded sample and the sample being inspected 30:1 zoom ratio means magnifications from 10x to 300x can be accessed with a single objective lens Use hotkeys and shortcuts to quickly access functions Save the most commonly used camera settings with up to ten presets. Choose the optional remote control to improve user comfort and enable quicker access to preset system settings. Use overlays for instruction, comparison or measurement by placing a partially transparent image over the top of the sample view. Customise the zoom range to ensure the correct inspection settings Easily capture and share images using wi-fi - ideal for multiple users to quickly view and download images. EVO Cam II for simple measurements Perform simple measurements with EVO Cam II’s digital caliper or scaled grid. No need to transfer to a separate measurement station. Calibration tracking through the zoom range enables measurement at different points in the zoom range without risk. Large zoom range Outstanding image quality Focus stacking Overlay & image comparison On-board measurement WiFi image transfer Quick access settings Calibration tracking with zoom Import, export settings EVO Cam II – powerful, flexible and easy to use – all the tools you need to simply and quickly achieve your Quality goals. Custom overlay example Calibration tracking example www.dpv-elektronik.eu | DPV Elektronik-Service GmbH
EXCELLENT SUBJECT CLARITY Maximum Image Quality EVO Cam II’s wide range of precision objectives and wide-field lenses gives you the flexibility to customise your own application specific solution, enabling you to focus on the job. Two auto and one manual exposure modes with depth of focus control, let you set how much of the subject should be in focus. Brightness reference levels set the desired level for the auto exposure capability. Auto white balance and dynamic range expansion digitally extend the ability of the system. Achieving maximum image clarity is additionally supported utilising the latest back-illuminated sensor technology, dedicated image processing and noise management. Exceptional image quality is delivered in full HD resolution with excellent clarity without latency. DPV Elektronik-Service GmbH | www.dpv-elektronik.eu
360° rotating viewer Add an extra dimension to standard 2D imaging with direct and rotating oblique views of your subject. Utilise the power of motion to enhance three dimensional understanding by rotating the view around the centre of the image. Including an integrated 8-point LED ringlight and objective lens, the 34° degree oblique view allows views around the inside of holes or around the sides of raised components and solder joints Focus stacking Focus stacking gives you the capability to see an in-focus image in a single view even when the subject has features (depth) beyond the depth of focus of a single exposure. www.dpv-elektronik.eu | DPV Elektronik-Service GmbH
FLEXIBLE ENOUGH FOR TODAY AND TOMORROW Perfect for today’s Quality requirements, and as your inspection needs evolve, so does your EVO Cam II. Flexible and reconfigurable solution Quickly and easily repurpose your EVO Cam II for a range of tasks by selecting performance enhancing tools from the comprehensive options and accessories range. Precision objective lenses Ultra-high resolution and contrast, optimised for precision magnification work with definition excellence. Wide-field objective lenses Wide field of view, provides maximum flexibility and large zoom range. Suitable for large area subjects. Micro objective lenses High optical magnification of very small subject areas and details. Objective lenses A range of objective lens options ensure optimum results for any application, whether for high magnification, high precision detailed inspections, or for manipulation, re-work and assembly tasks requiring an extra long working distance. DPV Elektronik-Service GmbH | www.dpv-elektronik.eu
ILLUMINATION FOR ALL APPLICATIONS EVO Cam II gives you access to a wide range of lighting options to meet the need of your specific application. Illumination – get the right light for the right task Better control of your lighting gives better control of your results. Select the right lighting options to exactly meet your illumination needs – whatever your task. Episcopic (EPI) illuminator Inspection of any item requires light. Delivery of light down small bores, between tightly packed or tall components can be difficult. The EPI illuminator delivers light along the optical axis, meaning if the camera can see a subject it can be illuminated. Ideal for even the smallest of holes. The swing in/swing out design means it can be called on at a moments notice without affecting normal operation. Substage illumination Light your subject from beneath, particularly useful for inspection of translucent materials, including plastics and optics. Ultra Violet ring-light Commonly used in electronics, aerospace and forensics, Quadrant white and UV illuminator is used for inspection of UV fluorescing coatings, dyes and security features. Light Filters Choose exactly the filter you need from the range of objective and ring-light filters available, to enhance details not easily seen by the human eye. Colour temperature and polarised filters help to enhance details and contrast. Selectable colour filters simulate light from different light sources. Flexible illuminators Optimise light to highlight components, enhance depth perception or control reflections. Ideal for large area reflective subjects. www.dpv-elektronik.eu | DPV Elektronik-Service GmbH
EVO Cam II offers six stand configurations that can be fully adapted to your needs. Keep it compact - Mini monitor mounts For use when desk space is at a premium – mount a 10” or 12” monitor simply and directly to an Ergo stand and view images inline. Remote control For hand-held camera control; improves user comfort and includes quick access to pre-sets. Wifi dongle For use when transferring images from EVO Cam II to a computer. Allows the user to quickly view and download images and videos, and is ideal when access for multiple users is required. Floating stage Ideal for checking uniformity of components or inspecting sensitive samples, use EVO Cam II’s floating stage in conjunction with your choice of ERGO or Bench stand to provide smooth and precise control. Articulated arm stand § Designed for applications requiring extended reach, with ultimate flexibility. § Multi-point adjustability allows precise positioning and alignment. Single-arm boom stand § High stability boom stand, ideal for larger specimens. § Robust stand option, complete with heavy duty platform base and focus module. Double-arm boom stand § Extended reach, without compromising stability. § Easy adjustability allows precise positioning and alignment. § Available with platform base, or with clamp. Ergo stand § Exceptional stability for high magnification use. § Transmitted substage illumination option. § Floating stage option. § Coarse and fine focus control for high magnification subjects. Bench stand § Compact unit with lowprofile base and integral transmitted substage illumination. § Floating stage option. § For use with 1.0x objective. Multi-axis stand § Integrated gas strut making operation quick and effortless. § Available with platform base, or mounted directly to the work surface. EVOTIS advanced inspection workstation Enables EVO Cam II to quickly and efficient inspect fine details on large area subjects such as PCBs and multilayer components. Available in 3D and 2D configurations, EVOTIS features an independently lockable X-Y stage for methodical inspection along rows of component characteristics. DPV Elektronik-Service GmbH | www.dpv-elektronik.eu
ViCapture DimensionOne DimensionTwo ViFoxEVO ViPlus Image capture Annotation On screen measurement Overlays Reporting Advanced functions Focus stacking Edge detection Shape detection X-Y image stitching DimensionTwo DimensionTwo is the ideal extension to EVO Cam II inspections. Quick, easy calibrated measurements allows capture and sharing of vital data with colleagues, customers and suppliers. A range of software for a range of applications Select from a range of easy to use image capture and on-screen image measurement software where all of the necessary content has been refined for ultimate ease of use. SOFTWARE OPTIONS Tailor your EVO Cam II capability by integration with your choice of software. www.dpv-elektronik.eu | DPV Elektronik-Service GmbH
TECHNICAL INFORMATION Objective lens Magnification zoom range* Working distance Field of view at min.zoom Field of view at max.zoom Precision objective lenses 0.45x 2.3x - 68x 160 mm 241 mm x 134 mm 7.8 mm x 4.2 mm 0.62x 3.1x - 93.7x 106 mm 173 mm x 96 mm 5.5 mm x 3.1 mm 1.0x 5x - 151.2x 82 mm 88 mm x 57 mm 3.5 mm x 2 mm 1.5x 7.6x - 226.8x 43 mm 45 mm x 36 mm 2.3 mm x 1.2 mm 2.0x 10x - 302.4x 29 mm 37 mm x 27 mm 1.5 mm x 1.0 mm Wide-field objective lenses 2 dioptre 0.8x - 24x 440 mm 660 mm x 370 mm 21.5 mm x 12.0 mm 3 dioptre 1.15x - 32.6x 300 mm 370 mm x 210 mm 14.7 mm x 8.4 mm 4 dioptre 1.71x - 51.41x 245 mm 293 mm x 171 mm 10 mm x 5.5 mm 5 dioptre 2.12x - 65.5x 197 mm 232 mm x 135 mm 8 mm x 4.5 mm Micro objective lenses 5x 250x - 362x 2.0 mm 2.2 mm x 1.2 mm 1.4 mm x 0.8 mm 10x 500x - 725x 2.1 mm 1.1 mm x 0.6 mm 0.7 mm x 0.4 mm *Using a 24 inch screen There are several factors that are inseparable when selecting working magnification. As magnification increases, field of view and working distance decrease. Ergonomics and detailed working EVO Cam II overcomes the difficulties of conventional binocular eyepiece microscopes by preventing the need to lean over the system. Ergonomics extend to hand and arm position through the use of the external keypad. If you require the benefits of the depth perception that come with a stereo microscope take a look at our range of ergonomic eyepiece-less stereo microscope systems. DPV Elektronik-Service GmbH | www.dpv-elektronik.eu
MAIN SPECIFICATION Camera Full HD Surface illumination 8-point ring light. Colour temperature 5,500K (adjustable with filter options) Sub-stage illumination Optional Front panel control On/Off, zoom in, zoom out, overview, surface illumination level, sub-stage illumination level, image capture, menu Remote control Optional Interfaces HDMI, USB3 (PC connection), USB2 (stand alone image capture), WiFi (optional) CAMERA SPECIFICATION Camera zoom 30:1 Digital zoom 12:1 Camera resolution 1920x1080 Sensor 1/2.8” CMOS back-illuminated Frame rate 50fps & 60fps (switchable) Saved file type PNG, JPEG+,JPEG,JPEGFEATURES Premium licence Focus stacking (max.depth 110mm) Inspection features Image comparison, overlay, supervisor settings lock, customisable zoom range, save/ import/export settings Reporting features Image capture, time stamp Measurement features Virtual caliper (x-axis separation, y-axis separation, diagonal - point-to-point), scaleable grid, overlays, calibration tracking General features Image capture, image playback, noise reduction, light control Exposure control Auto, aperture priority, manual Focus control Auto, manual Keypad shortcuts Presets, white balance, front panel lock, AE/ME switching, AF/MF switching Features retained in supervisor mode Image capture, zoom, lighting control, overlay on/off, caliper on/off, grid on/off, recall presets 1-10, image comparison on/off, image playback, focus stacking (all other settings locked) Features retained in front panel lock mode Image capture User programmable presets 10 (Save, import/export) Image capture USB memory stick or via PC connection Languages English, French, German, Spanish, Italian, Portuguese, Russian, Chinese, Japanese, Korean Image mode Auto white balance, black and white, wide dynamic range, noise reduction, infrared mode, capture button action www.dpv-elektronik.eu | DPV Elektronik-Service GmbH
Vision Engineering Ltd. has been designing and manufacturing high quality ergonomic microscopes, digital instruments, inspection and non-contact measuring systems for over 60 years. Innovation With a philosophy of design innovation, Vision Engineering holds world patents for a number of optical/digital techniques, significantly improving viewing ergonomics and enabling customer quality and productivity improvements. Quality Vision Engineering prides itself on quality products, electronics, mechanics and optics and is certified for the quality management system ISO 9001:2015 and calibration accreditation ISO 17025:2017. Quality is as important to us as it is to our customers. Our systems have proved themselves many times over and are chosen by the world’s leading companies. Global Vision Engineering has manufacturing and design facilities in the UK and USA, plus sales and support offices throughout Europe, the Americas, the Far East, and Asia. We support our customers with close technical and service support anywhere in the world. VISION ENGINEERING OUR DIFFERENCE visioneng.com Sales Partner Disclaimer - Vision Engineering Ltd. has a policy of continuous development and reserves the right to change or update, without notice, the design, materials or specification of any products, the information c ontained within this brochure/datasheet and to discontinue production or distribution of any of the products described. EO&E: Errors and omissions excepted. EVO_Cam_II_Brochure_English_LIT5431EN_03 | Copyright ©2021 Vision Engineering Ltd. | All rights reserved. To see our focused quality, please contact your Vision Engineering branch, local authorised distributor, or visit our website: visioneng.com Vision Engineering Ltd. (UK Manufacturing & Commercial) The Freeman Building, Galileo Drive, Send, Surrey, GU23 7ER, UK T +44 (0) 1483 248300 E generalinfo@visioneng.co.uk Vision Engineering Ltd. (Central Europe) Anton-Pendele-Str. 3, 82275 Emmering, Deutschland T +49 (0) 8141 40167-0 E info@visioneng.de Nippon Vision Engineering (Japan) 272-2 Saedo-cho, Tsuduki-ku, Yokohama-shi, Kanagawa 224-0054, Japan T +81 (45) 935 1117 E info@visioneng.jp Vision Engineering (South East Asia) P-03A-20, Impian Meridian, Jalan Subang 1, USJ 1, 47600 Subang Jaya, Selangor Darul Ehsan, Malaysia T +604-619 2622 E info@visioneng.asia Vision Engineering Inc. (NA Manufacturing & Commercial) 570 Danbury Road, New Milford, CT 06776, USA T +1 (860) 355 3776 E info@visioneng.com Vision Engineering Ltd. (Italia) Via G. Paisiello 106 20092 Cinisello Balsamo MI, Italia T +39 02 6129 3518 E info@visioneng.it Vision Engineering (China) Room 904B, Building B, No.970, Nanning Road, Xuhui Vanke Center Shanghai, 200235, P.R. China T +86 (0) 21 5036 7556 E info@visioneng.com.cn Vision Engineering (Mexico) T 800 099 5325 E infomx@visioneng.com Vision Engineering (Latin America) E infomx@visioneng.com Vision Engineering Technology Centre 16 Technology Drive, Unit 148, Irvine, CA 92618, USA T + 1 (800) 644 7264 (Toll free) E info@visioneng.com Vision Engineering Ltd. (France) ZAC de la Tremblaie, Av. de la Tremblaie 91220 Le Plessis Paté, France T +33 (0) 160 76 60 00 E info@visioneng.fr Vision Engineering (India) T + 91 (0) 80-5555-33-60 E info@visioneng.co.in Vision Engineering (Brazil) E info@visioneng.com.br FM 557119 Vision Engineering Ltd. has been certified for the quality management system ISO 9001:2015 and calibration accreditation ISO 17025:2017. DPV Elektronik-Service GmbH Systeme für die Elektronik-Fertigung Herrengrundstr. 1 75031 Eppingen, Deutschland Telefon: +49 (0) 7262-9163-0 E-Mail: sales@dpv-elektronik.de Internet: www.dpv-elektronik.eu
